4 - Informed Heuristic Search

ucla | CS 161 | 2024-01-22 14:37

Table of Contents

  • generally we want to move in a specific direction to get to a city from a city
  • heuristic function $h(n)$ gives us the information about how far east or how close to the goal state we are
  • pick node based on evaluation function $f(n)=h(n)$ s.t. $h(goal)=0$
  • in this algo, the heuristic is static for all nodes, specific to the given initial and goal state; however
  • is not optimal, but made efficient moves and only expanded aa path to the goal state
  • not complete, can get stuck in sink because decisions are made on the heuristic -> can be mitigated if infinite paths are prevented
  • Time and space $O(b^m=|V|)$ heavily dependent on the heuristic -> could get to $O(bm)$

    Limitations

  • UCS from is too conservative and greedy is suboptimal
  • so we must use some other solution e.g. \(f(n)=g(n)+h(n)\)
  • where $g(n)$ is the true path cost introduced in UCS
  • we assume the heursitic is a good estimate and is optimistic in less than the actual cost but positive - admissible heuristic

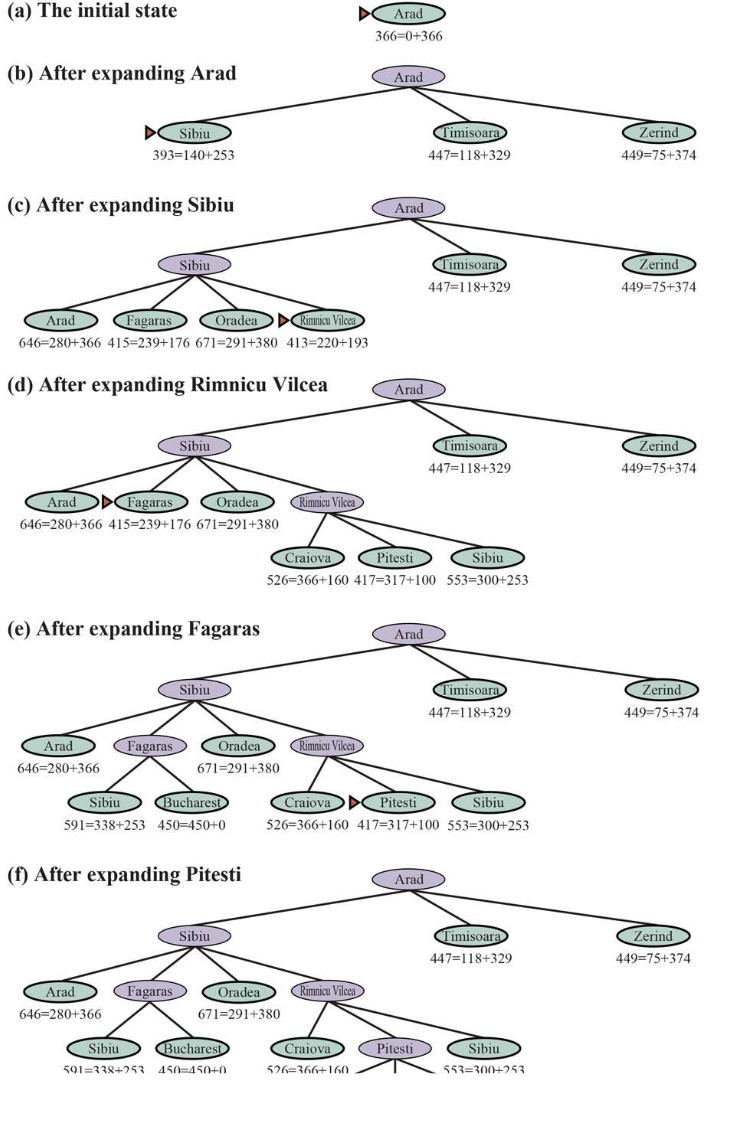

    A*

  • we use the evaluation function described above: \(f(n)=g(n)+h(n)\quad s.t.\quad 0 \le h(n) \le h^*(n)\quad\forall n\)
  • we begin with $h(n)=\max$ and $g(n)=0$ and end when $h(n)=0$ and $g(n)=C^*$ (optimal path cost)
  • A* is optimal iff the heuristic is admissible for all nodes
    • A* will surely expand all nodes on the minimum path $f(n)<C^*$
    • A* will then expand some nodes on the “goal contour” $f(n)=C^*$
    • and never expands nodes beyond the minimum path $f(n)>C^*$
    • thus it is optimally efficient but may be unlucky and not select the optimal one first

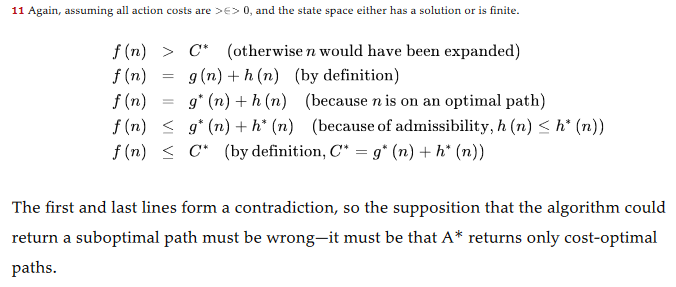

  • admissibility proof (contradiction)

    • Consistency vs Admissibility (beyond scope)

  • a heuristic is admissible if it never overestimates the true cost i.e. $h(n) \le h^*(n)$

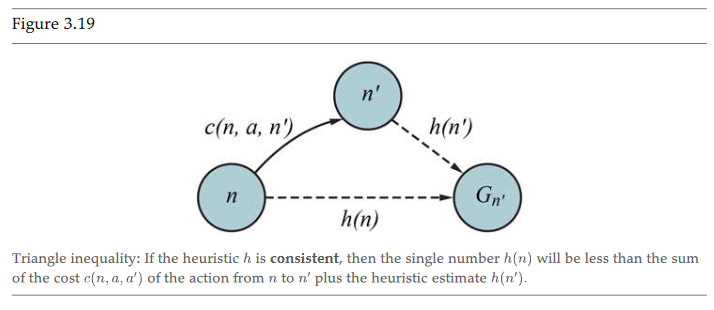

  • but a stronger property is consistency s.t. every consistent heuristic is admissible: \(h(n)\le c(n,a,n')+h(n')\)
  • proof by triangle inequality

    • Inadmissible heuristic - Satisficing search

  • some solutions require expanding too many nodes for optimality, so we can use a suboptimal heuristic and decrease time to goal

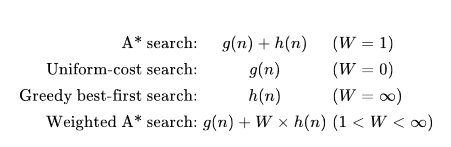

  • we multiply a linear weight to the heuristic to make the algo more heavily weight the heuristic
  • e.g., detour index to describe curvature of a road on the straight line path between 2 cities \(f(n)=g(n)+W\cdot h(n)\quad|\quad W>1\)

    Solving 8-sliding tile puzzle

  • Create an admissible heuristic that allows $h \le h^*$
    • $h_1$ is the number of students wrong tile positions in the puzzle
    • $h_2$ is the sum of manhattan distances of tiles to their correct positions
    • clearly $h_2$ is better bc it gives us more. information on unique states
    • $h_2$ dominates $h_1$ s.t. $\forall n\quad h_1(n)\le h_2(n)$

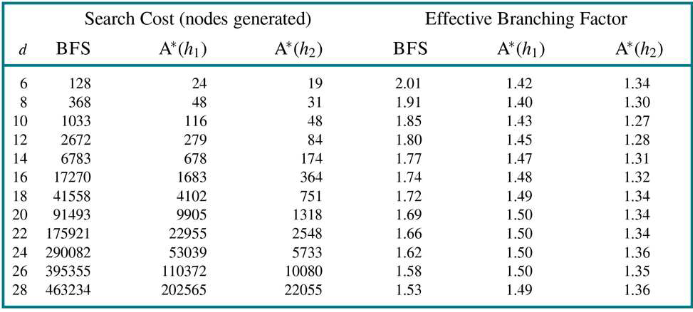

      Effective Branching Factor

  • $b^*$ s.t. the number of nodes is given by \(N=\sum_{i=0}^d {b^*}^i\)
  • used to measure the performance of a heuristic
  • for 8-sliding tile, h1 is misplaced tile count, h2 is manhattan distance

    Choosing a Heuristic

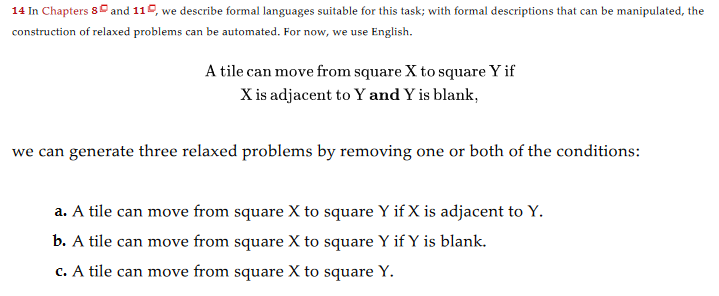

  • simplify the problem by removing constraints, and optimize on the relaxed game
  • this will ensure admissibility since the relaxed game can be solved in fewer state transitions than the actual game
  • e.g. sliding tile
  • absolver - find rules of the game and relax constraints
  • e.g. remove tiles in a sliding puzzle, remove branches in the traveling salesman, etc. and use A* to find the best heuristic to the solution of this relaxed problem
  • use this as the heuristic of the next complicated problem

    Pattern databaes

  • store a database of each pattern of relaxed games and the heuristics
  • choose the heuristic that dominates by taking max over the pattern databases

    Disjoint Pattern Database

  • use 2 disjoint relaxed problems and find their heuristics

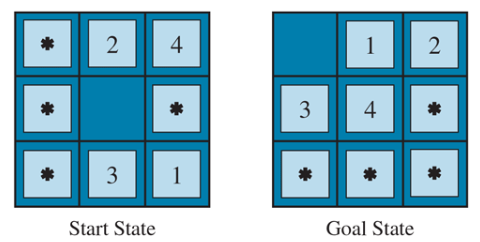

  • sum these 2 heuristics to get $h’$ e.g. in the sliding puzzle, $h_{1234}$ is the heuristic found by A* on the sliding puzzle with 5,6,7,8 made anonymous and vice versa for $h_{5678}$
  • summing these 2 without changes is inadmissible bc they share moves (i.e. moving 1234 also implicitly moves 5678)
  • so we then adjust the subproblem to make the cost of moving the unmasked tiles positive but moving masked tiles/actions to 0 cost
  • then sum both s.t. $h’ = h_{1234}+h_{5678}$ s.t. \(h'\le h^*\)

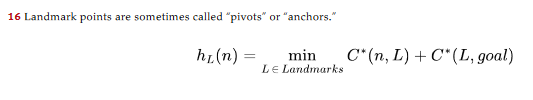

    Landmarks

  • use landmark points, e.g., major cities on a path
  • then work on optimality between 2 landmarks and landmark to goal

    Shortcuts

  • adding shortcuts for known states can make landmark heuristics more efficient using a differential heuristic

Variations - Memory Bounded search

Reference counting

  • keep a reference counts table for each node
  • remove a node from the table when all ways to reach it have been explored
  • reduce frontier by keeping only $k$-top nodes with best $f$ scores
  • this makes it suboptimal and incomplete but choose good k to make memory efficient
  • “a single beam/chord of the goal contour”

    IDA* - Iterative deepening A*

  • same benefits as IDS - but re-visits prev nodes many times
  • cutoff here is not 1 but instead $f$-cost $g(n)+h(n)$
  • there can be no more than $C$ iterations bc we find the goal in path cost $C$

    Bidirectional A*

  • no guarantee of optimality bc heuristics are different for forward and backward search depending on goal (final or initial state)
  • path cost is
  • using 2 frontier priority queues, we can make an evaluation function:
  • front-to-end uses heuristics to estimate forward and backward travel costs to start/end
  • front-to-front tries to estimate distance to other frontier
  • usually not better than standard A*

Informed Search Comparison
