14 - Ray Casting HSR

ucla | CS 174A | 2024-03-19 02:35

Table of Contents

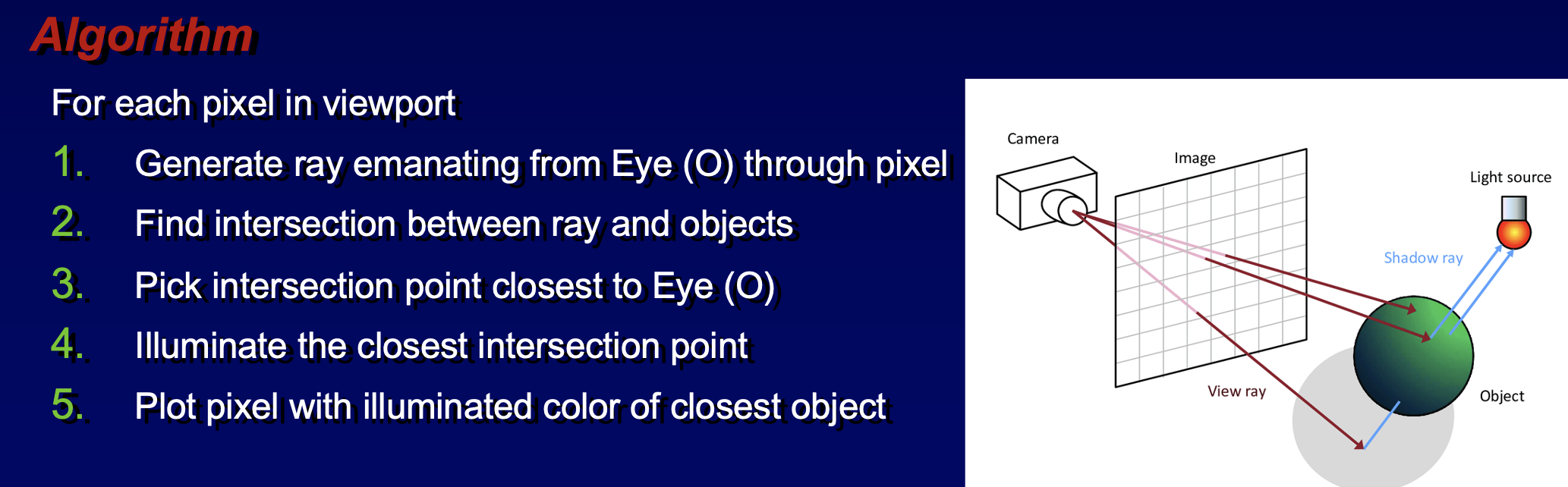

Backward Ray casting

  • a WS or ES algo

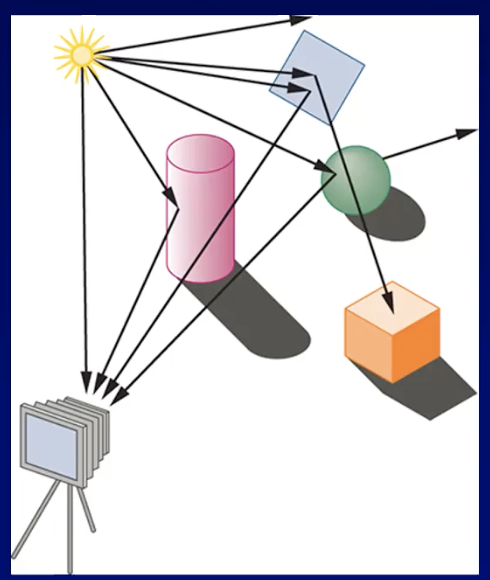

  • Forward ray casting is hard:
  • Backward ray casting: hoot a ray FROM eye -> through pixel -> intersect with all objects in the world space
  • NOTE for complex polygons/polyhedrons, we can draw bounding boxes to make intersection calculations easier

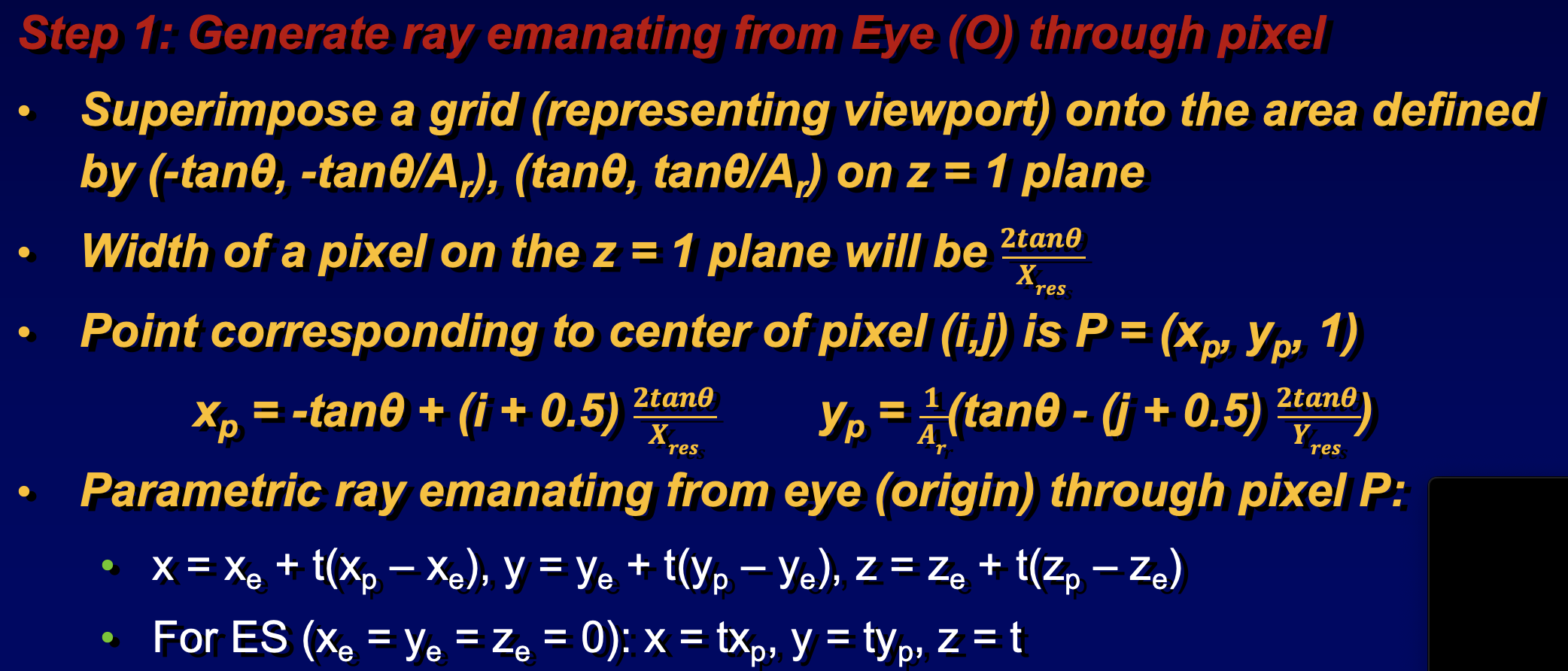

  • Step 1

  • find coords of the ith pixel using the half angle
  • then generate the ray (in ES) from eye (origin) through the center of the pixel using the x,y coords of the pixel, then z is at z=1 (we position the grid representation of the viewport/screen at z=1)

    Step 2

  • check for intersection with each object
  • if there is an intersection, then calc intersection illumination

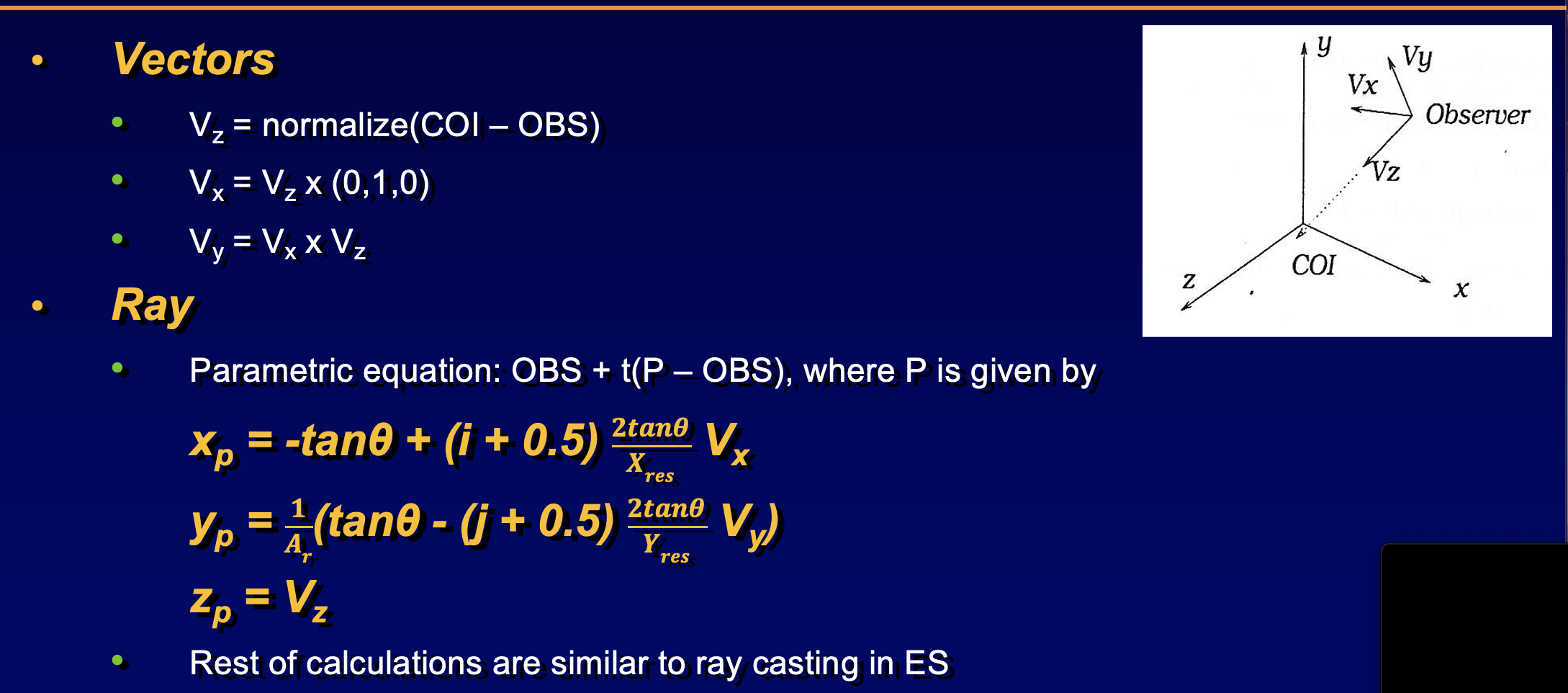

    Casting in WS: need to factor in eye coords

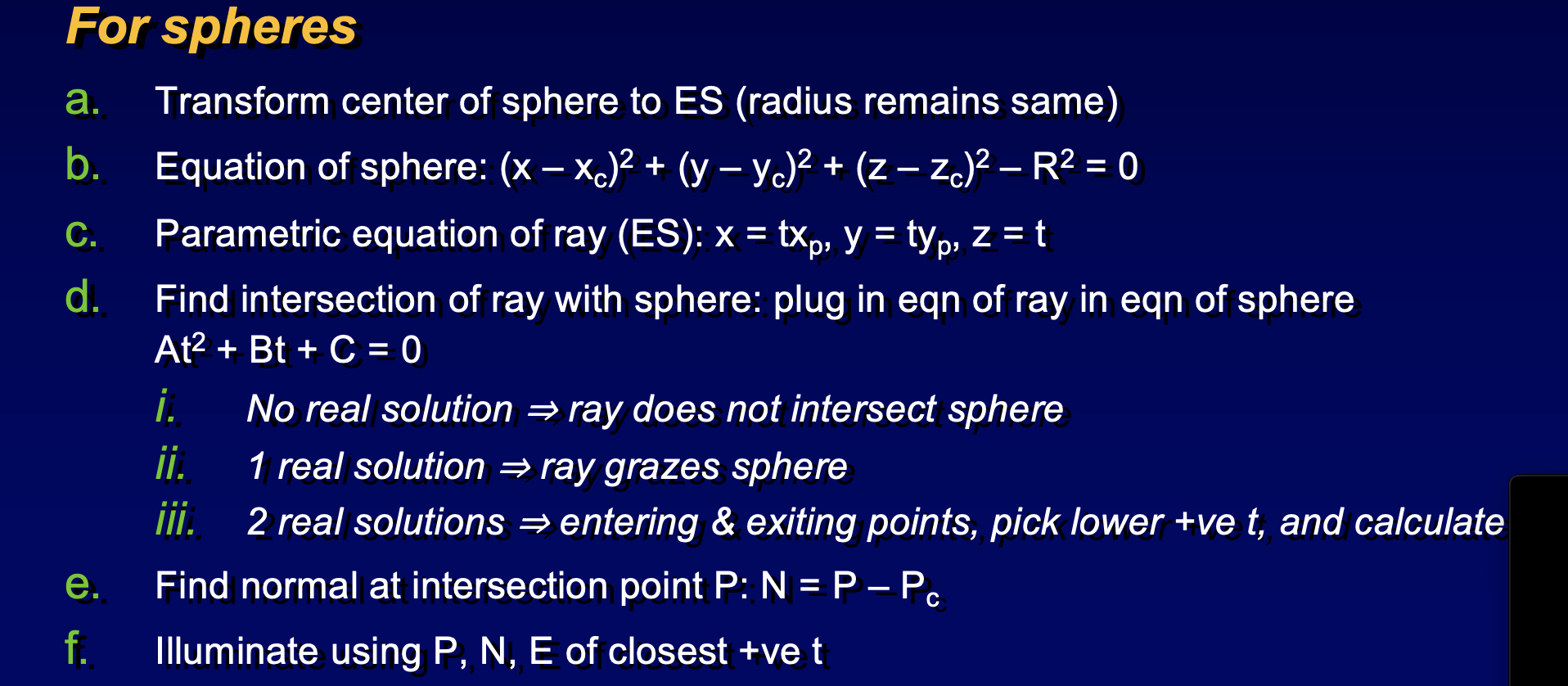

    Ray casting Spheres

  • pick the closest intersection of an intersected sphere
  • find the normal at that point: $N=P-P_c$
    • where P is the intersection point

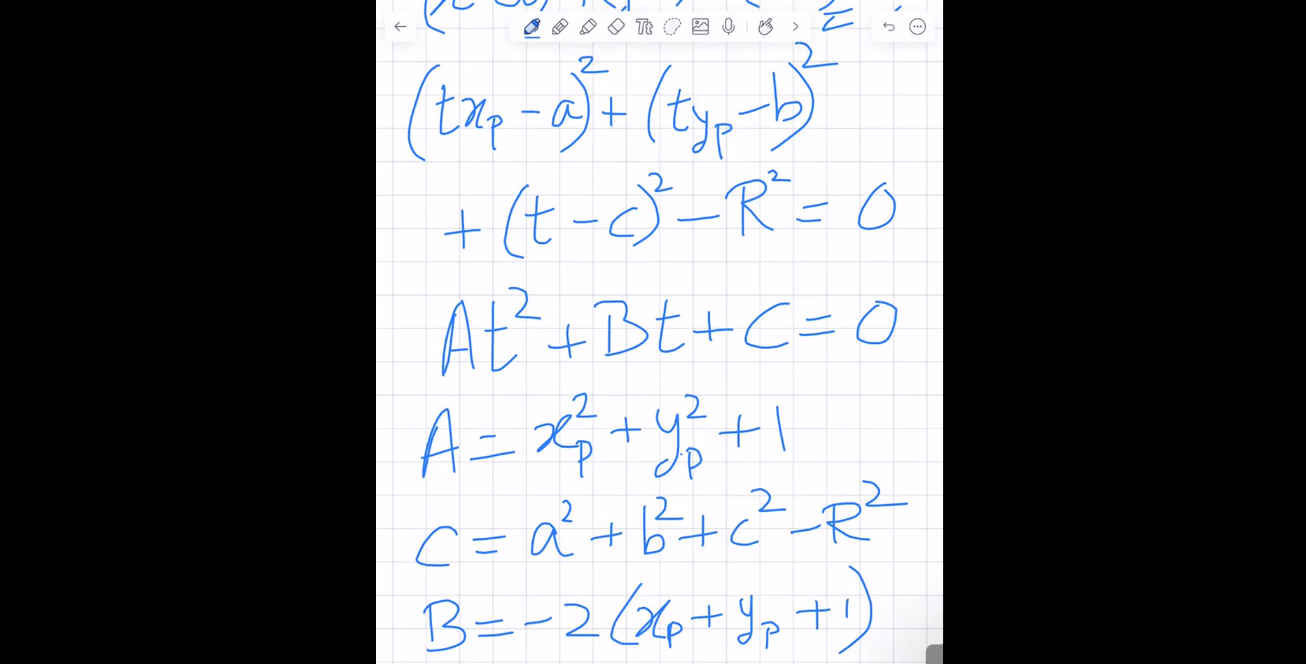

    • $P_c$ is the center of the intersected sphere $B^2-4AC<0\implies$ no intersection $B^2-4AC=0\implies$ 1 intersection $B^2-4AC>0\implies$ 2 intersections, choose the closest (smallest t) where we determine A,B,C as:

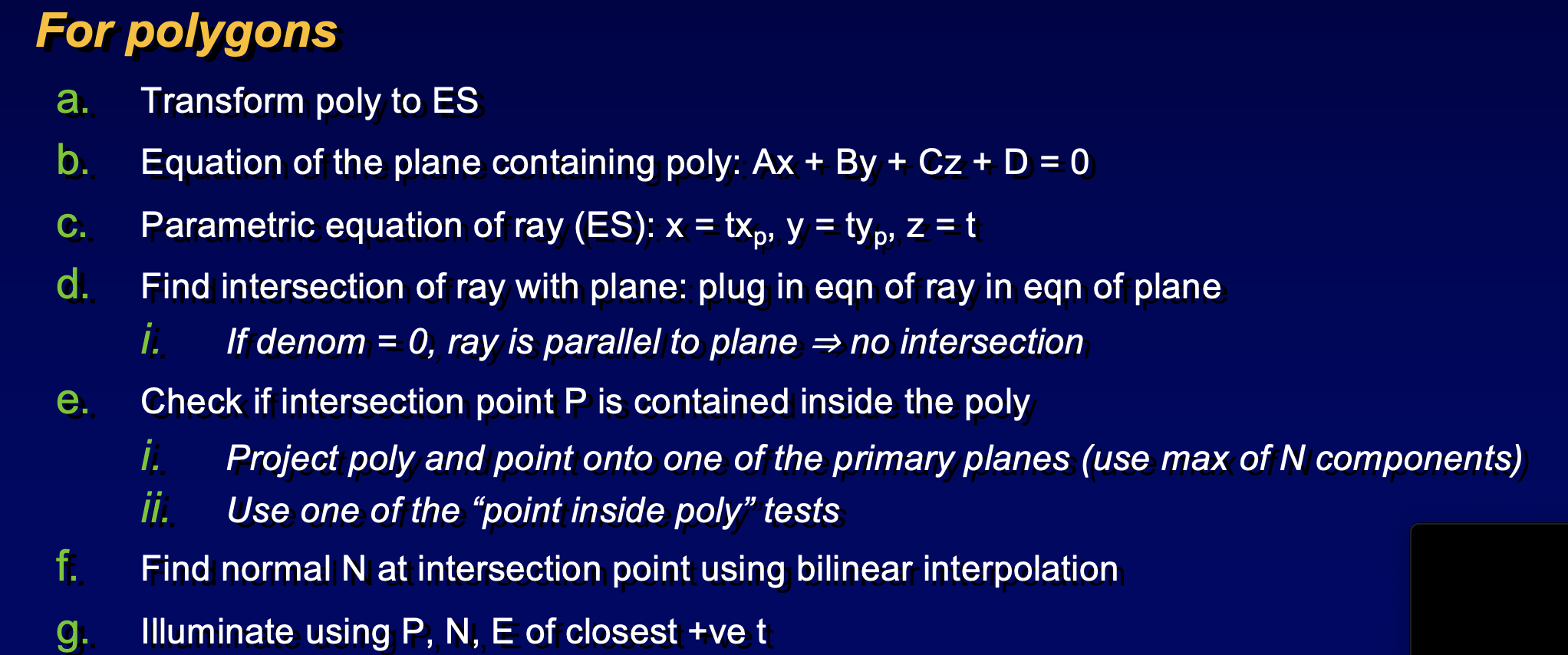

      Ray casting Polygons

  • if planar polygon, then normal is A,B,C
  • else, interp normal given vertex normals
  • after plugging ES ray with plane, we solve for the interp param \(t=-\frac{D}{Ax_p+By_p+C}\)
