2 - Search Problems and God's Algorithm

ucla | CS 161 | 2024-01-10 14:14

Table of Contents

General Search Problems

Types of Problems

  • 8-puzzle (sliding numbered pieces in a grid to be ordered)
  • rubiks cube
  • missionaries and cannibals (moving across the river)

    General Structure

  • Initial state
  • final state
  • actions
  • transition/successors
  • cost for actions

    Task

  • find set of actions to move from initial state to goal state
  • usually with lowest cost overall cost of actions

    Process

  • consider all possible moves at every state
  • consider consequential moves

    8-Puzzle Formulation

    Problem

  • grid 3x3 with blocks numbered 1 through 8
  • initial state: randomized order
  • goal state: some ordering of the blocks
  • actions: slide blocks up/down left/right

    Simplifying actions

  • instead of consider all possible number blocks AND directions
  • we can just look at which number to move bc only 1 open blank square
  • BUT, instead we can just look at where to swap the blank to to adjacent blocks

    Uninformed search observations

  • states are atomic - no internal structure, we just observe states as some random internal state identified by a pointer/code/hash
  • states are discrete - each state is unique and distinguishable by value from other states
  • no percepts - we cannot observe state transitions as we perform actions (i.e. we solve the rubiks cube blindfolded just knowing the initial and final states)
  • deterministic transitions - no unintended consequences or possibilities of errors e.g., UB from valid moves
  • choice of action states is important
    • move tile x, UDLR
    • move tile
    • move blank UDLR
    • move blank
  • actions may not be applicable to all states - transition to OOB state e.g., game over, destroyed, corrupt, etc.

Search Trees

  • representation of all states resulting from all possible actions
  • each node is the state and each edge is the action e.g. D for blank down
  • redundant states can be identified and ignored in drawing search trees - note identifying when this happens can be difficult in other problems
  • the solution is the set of actions that lead from initial state to end state, i.e. tree search
  • we might have infinite repeating states or infinite unique states - not in the solution
  • NOTE: search space is the set of all possible unique states within 1 action of another state in the set

    Observations

  • avoid repeated states
  • cost here is measured as length of the path
  • difficulty of problem measured via problems
    • number of unique states
    • branching factor, e.g. 3x3 puzzle has at most factor of 4
    • solution depth
  • some problems may become unsolvable as difficulty increases so algo’s should look at average cost to solve
  • e.g. 8-puzzle is NP-complete, thus a hugely large grid can be solved in the same time iff P=NP (which so far is not true)

    Missionaries and Cannibals

    8-queens

    Machine

  • you have chess board an want to place 8 queens such that no queen is attacking another
  • initial state: empty board
  • state space: all possible placements of 0<=n<=8 queens
  • action/transition space: placing a queen
  • goal state: 8 queens on board not attacking

    Optimization

  • this setup has 64! nodes in the decision tree
  • we can constrict the action space by limiting actions to only those that are valid moves but this is still large
  • now we can also avoid redundancy in permutations by working row by row to limit the branching factor
  • this bring it down to 2057 possibilities

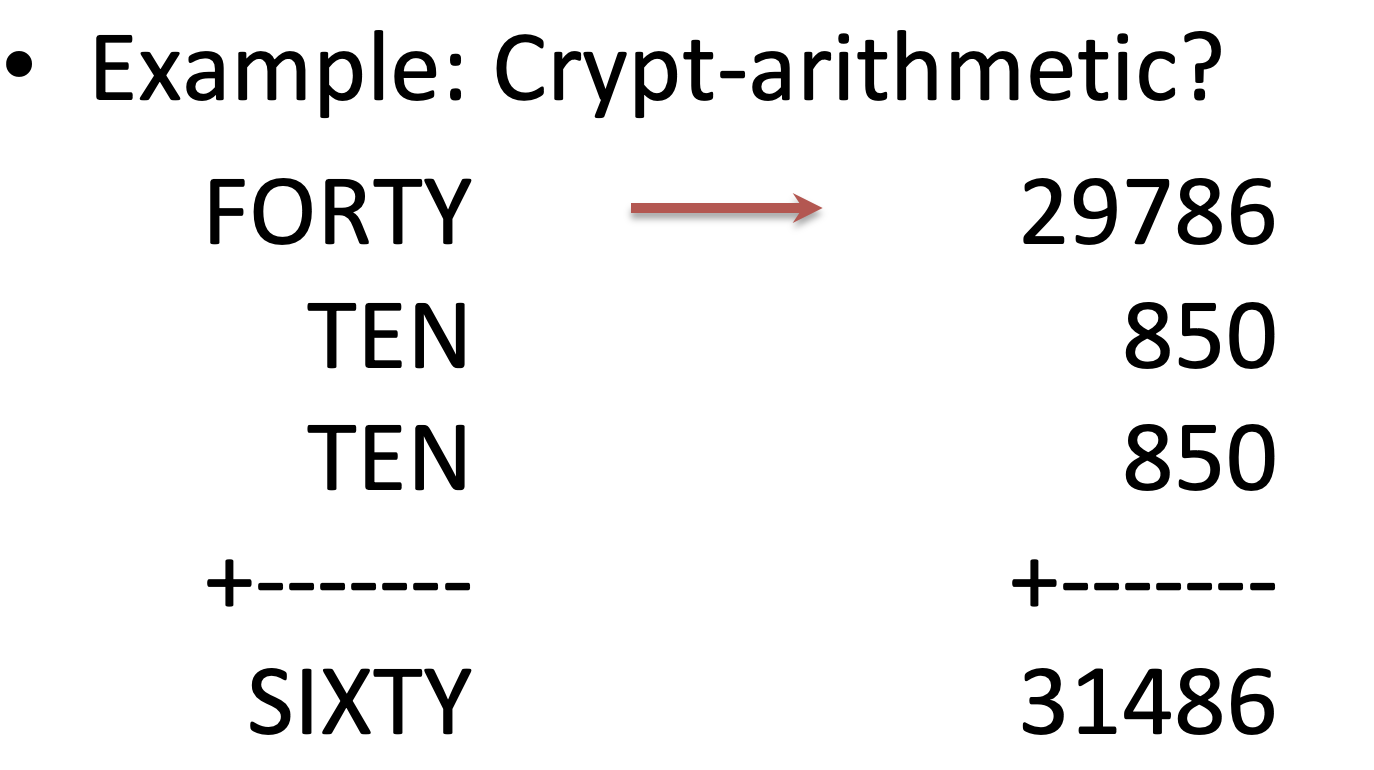

Crypt-arithmetic

Problem

  • we are given a sum of words, we must asssign a digit to each character to make the sum correct

  • Iterative solution

  • assgn each digit to a letter iteratively and branch so each level has 10 branches

    Swap solution

  • randomly assign, then swap while meeting constraints

Knut’s Problem

Problem

  • initial: some number: 4
  • final: some number: 5
  • actions: factorial, sqrt, floor

    Conjecture

  • there exists a solution for all numbers to all numbers
  • state space is infinite

State Formulations

Incremental State Formulation

  • incrementally adding elements to a state at each branch
  • e.g. adding 1 queen each time

    Complete State Formulation

  • starting with the state full and making actions that permute the arrangement
  • e.g. starting with a chess board of 8 queens (valid) and permuting 1 queen at a time (validly)
