6 - Context-Free Grammar

ucla | CS 181 | 2024-04-29 14:11

Table of Contents

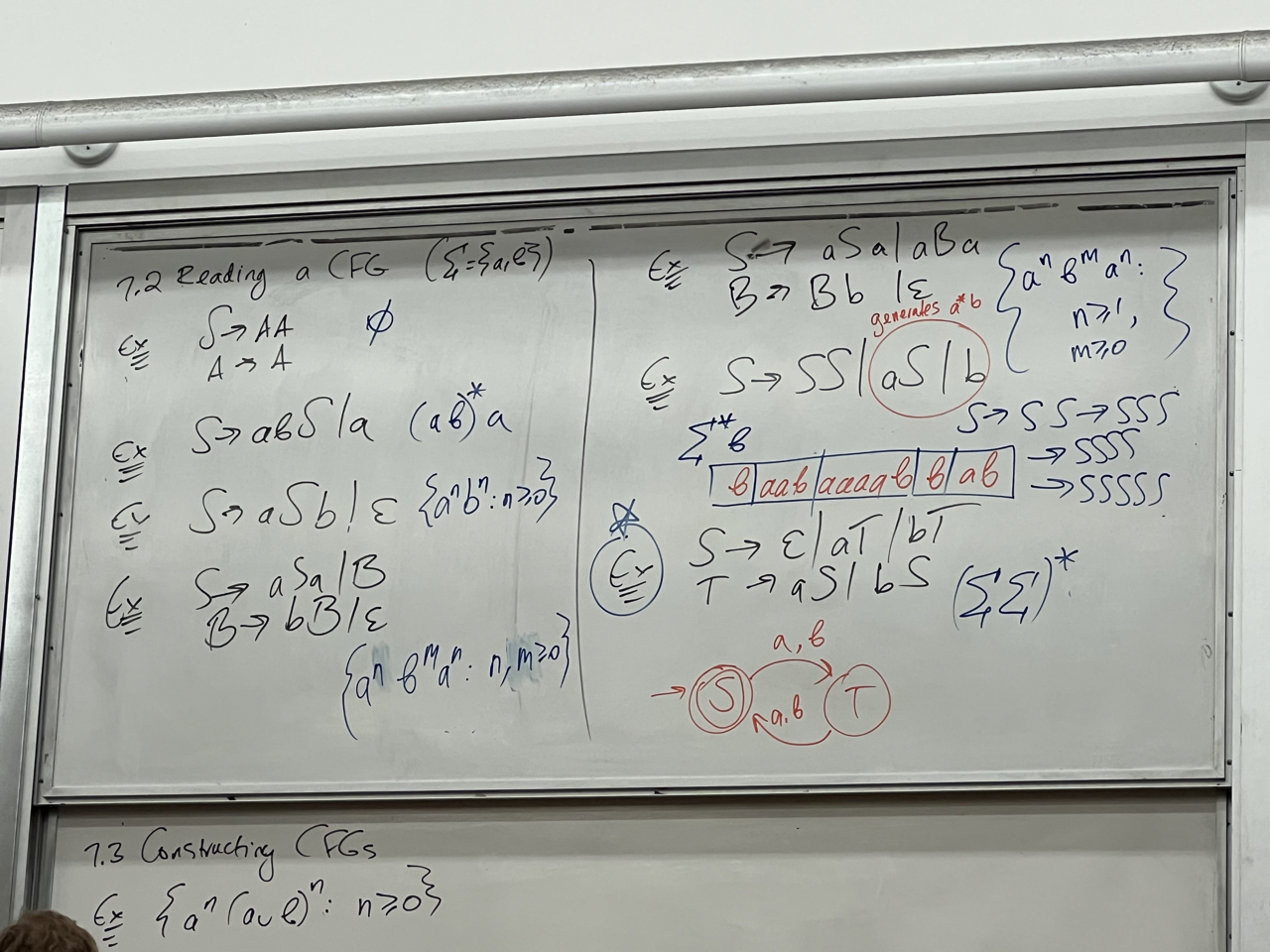

Basic Notions

  • The alphabet (also called terminals) can be defined as a set $\Sigma$
  • Variables are nonterminal symbols defined by the set $V$
  • Transitions (known as substitution rules) are defined as mappings that are not necessarily unique or bijective.
    • by convention, the first variable of the list of substitution rules is the start “state”
  • e.g. CFG
    • $\Sigma={a,b}$
    • $V={S,A,B}$
    • Substitution Rules:
      • $S\to A$
      • $S\to B$
      • $A\to aAb$
      • $A\to\varepsilon$
      • $B\to bBa$
      • $B\to \varepsilon$
  • a derivation is a list of substitutions made from the rule set to result in a string on terminals, substitutions can only be made for nonterminals
  • e.g. a derivation
    • $S\to A\to aAb\to aaAbb\to aaaAbbb\to aaabbb$
    • where we used rules in order:
    • $#1\to#3\to#3\to#3\to#4$
  • the language of a grammar is the set of all strings that can be derived
  • OR
    • $S\to AB$
  • e.g., shorthand of the previous CFG
    • $S\to AB$
    • $A\to aAb\varepsilon$
    • $B\to bBa\varepsilon$
  • e.g., the lang for the previous CFG
    • $L={a^nb^n:n\ge0}\cup{b^na^n:n\ge0}$
  • CFG - a tuple $(V,\Sigma, R,S)$
    • $V$ is a nonempty set of vars (nonterminals)
    • $\Sigma$ is the set of terminals s.t. $V\cap \Sigma=\emptyset$
    • $R$ is the set of substitution rules
    • $S\in V$ is the start variable

      CFG -> RegEx Examples

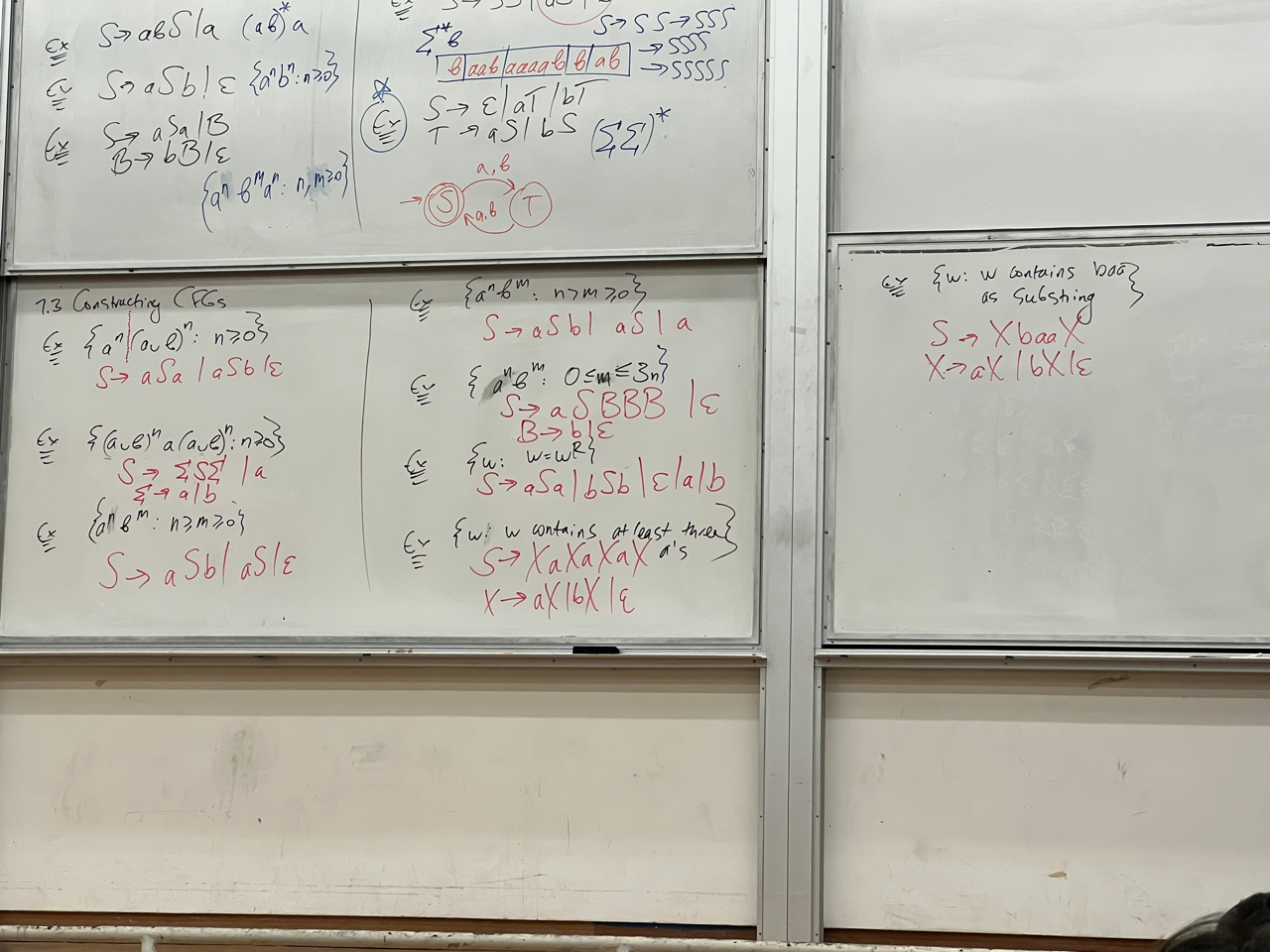

Language -> CFG Examples

Prog. Lang. PL24

  • identifiers: $(a\cup…\cup z)(a\cup…\cup z\cup0\cup…\cup9)^*$
  • numbers: positive integers
  • statement types: assignment or conditional
  • prog: single statement \(\Sigma=\{a,b,...,z,0,...,9,\gt,\lt,=,\sqcup,\mathbb P\}\)
  • pos digit: $D’\to 1…9$
  • any digit: $D\to D’0$
  • any num: $N\to NDD’$
  • letter: $L\to ab…z$
  • identifier: $I\to IL\space\space ID\space\space L$
  • quantity: $Q\to IN$
  • whitespace: $W\to\sqcup\space\space\mathbb P\space\space WW$
  • optional whitespace: $W’\to \varepsilonW$
  • test: $T\to QW’=W’Q\space\space QW’\gt W’Q\space\space QW’\lt W’Q$
  • assignment: $A\to IW’=W’Q$
  • conditional: $C\to if\space W\space T\space W\space then\space W\space S\space\space if\space W\space T\space W\space then\space W\space S\space W\space else\space W\space S$
  • start: $S\to AC$

Parse Trees

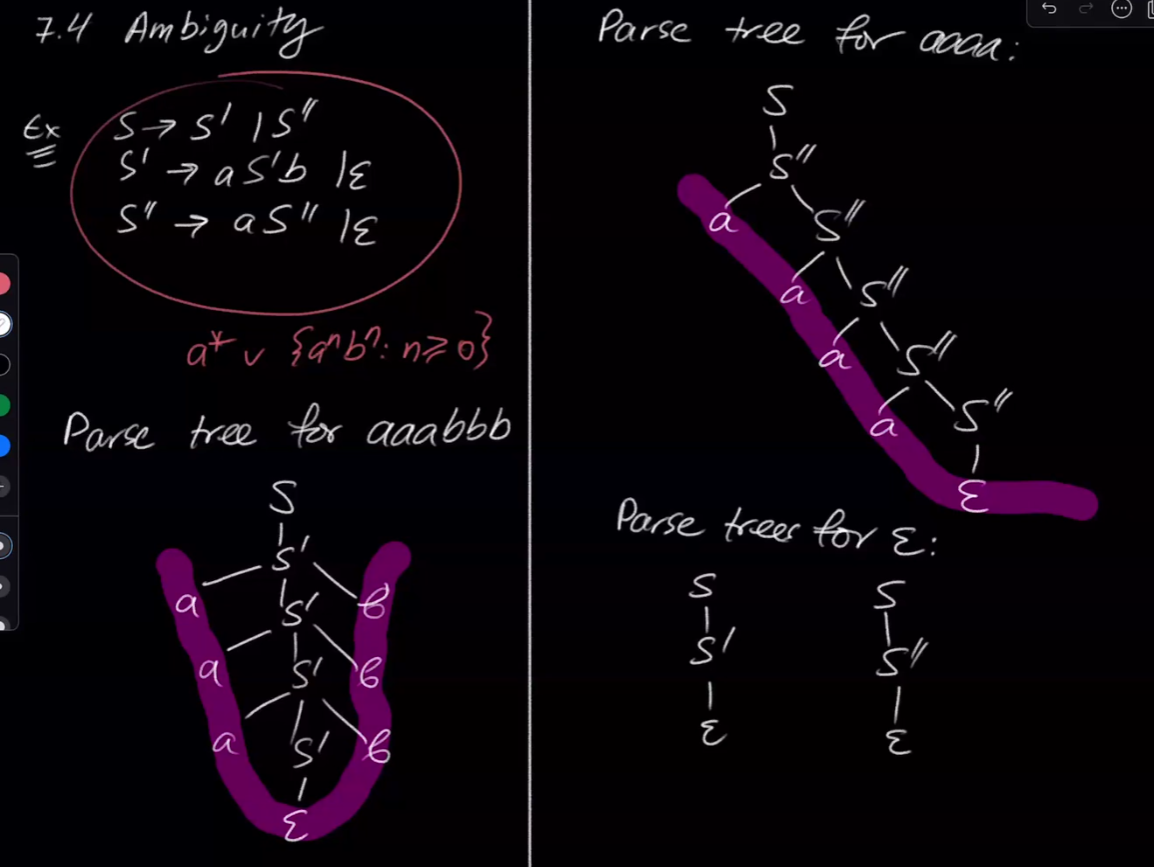

  • a tree that shows the actions taken to get a string from a set of derivations, the string is found as the in order traversal of the leaves of the parse tree
  • this can lead to ambiguity due to many possible parse trees that can lead to the same string e.g., above for empty string

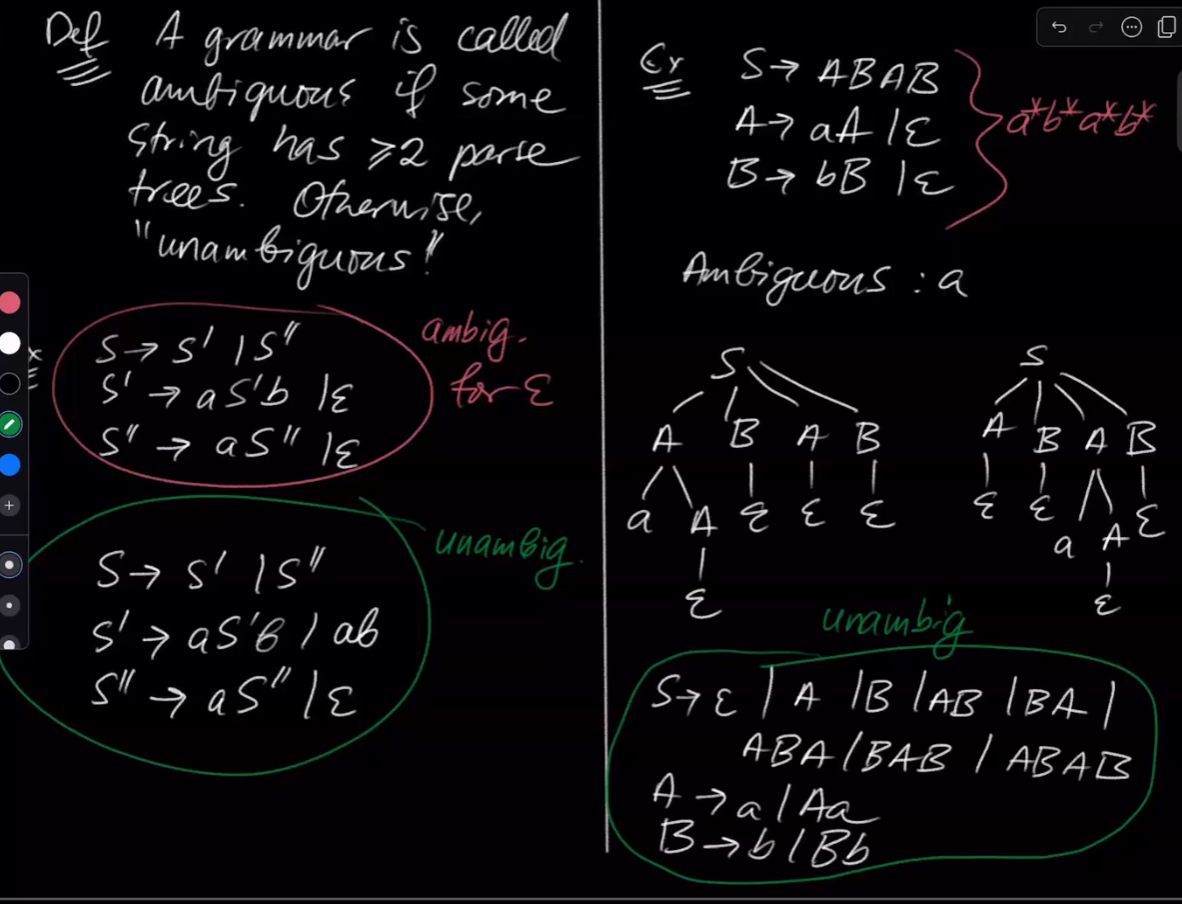

  • a grammar is ambiguous if some string in the grammar has 2 or more parse trees, otherwise its unambiguous

    Disambiguation

  • divide into case consideration of strings to disambiguate grammars
  • parse trees are unique if all nodes and branches in the trees are the same to the dot

    Determining Ambiguity

  • consider the following problem

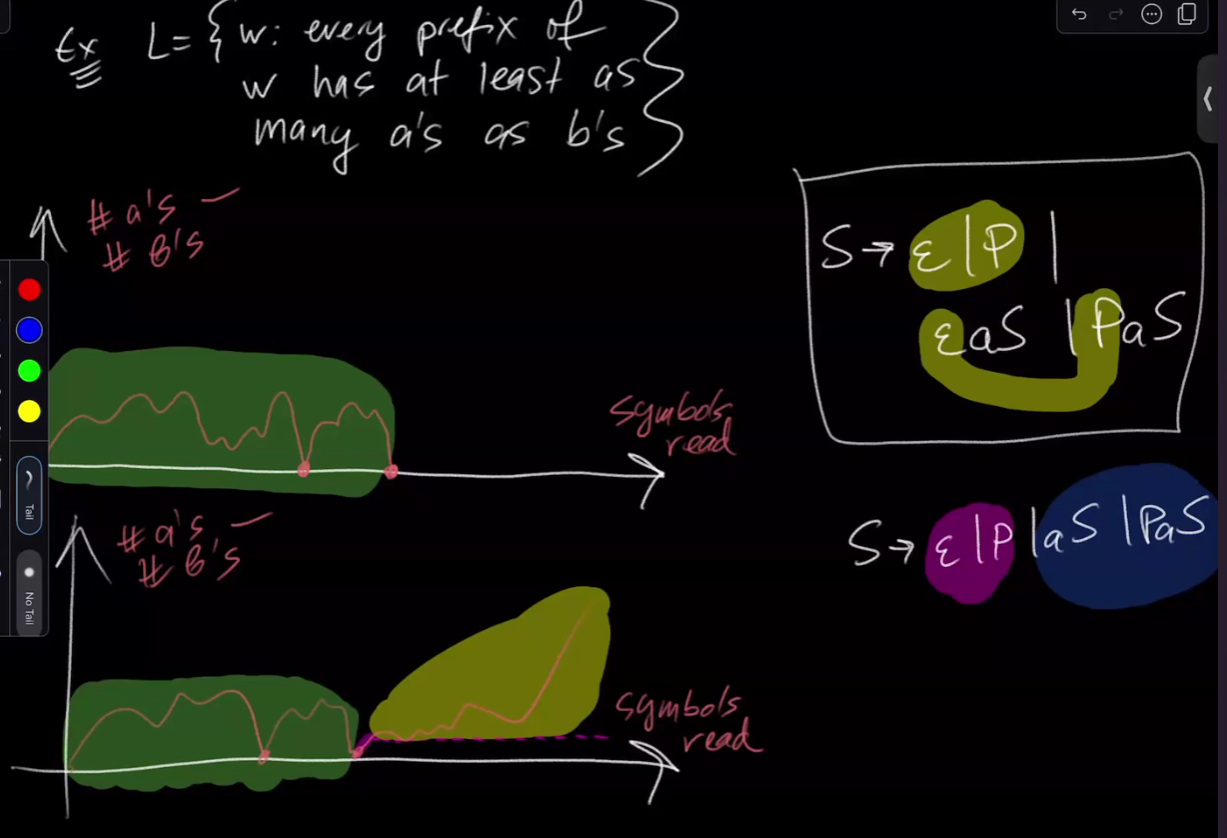

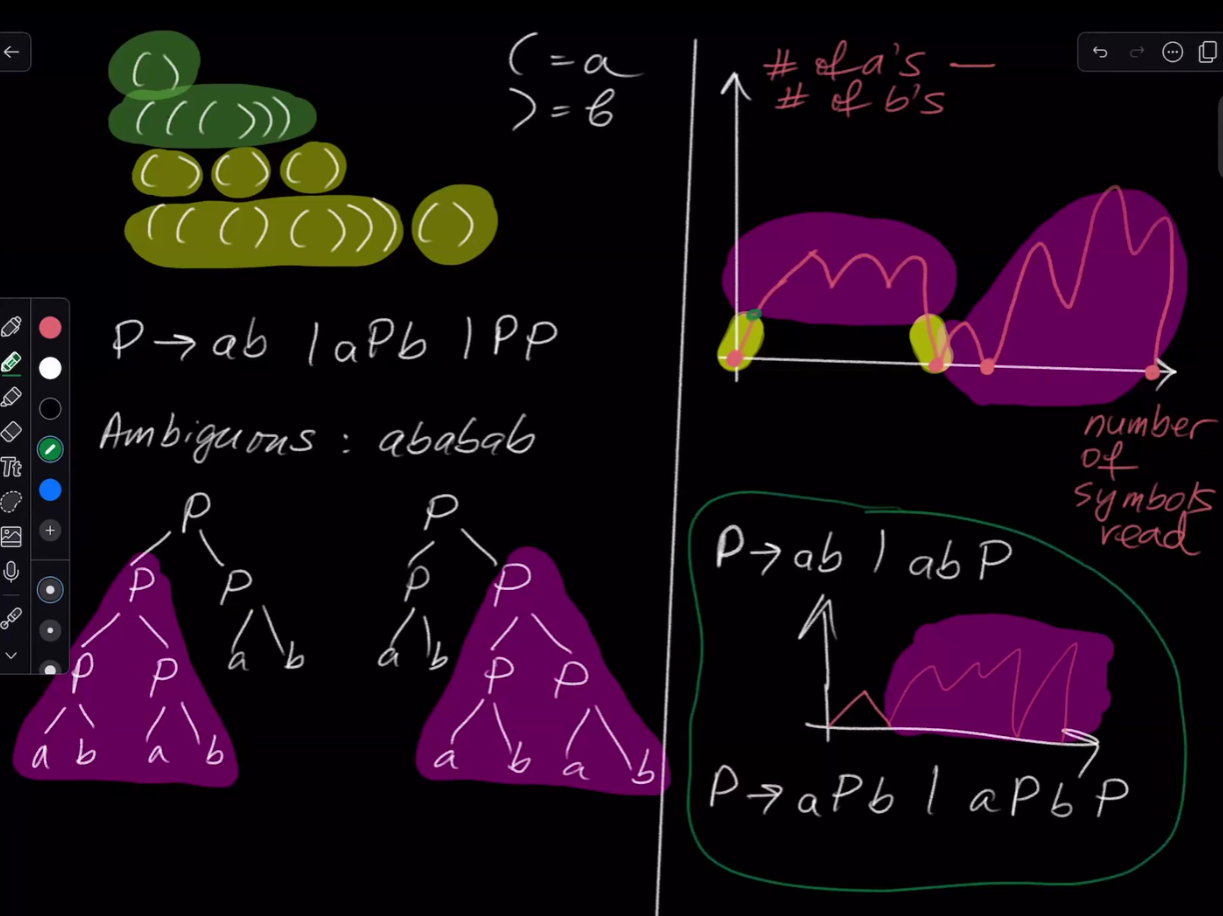

  • we can represent the equivalence in number of symbols as a function, so considering all possible graphs for the grammar shows us whether we converge or diverge by the end of the string

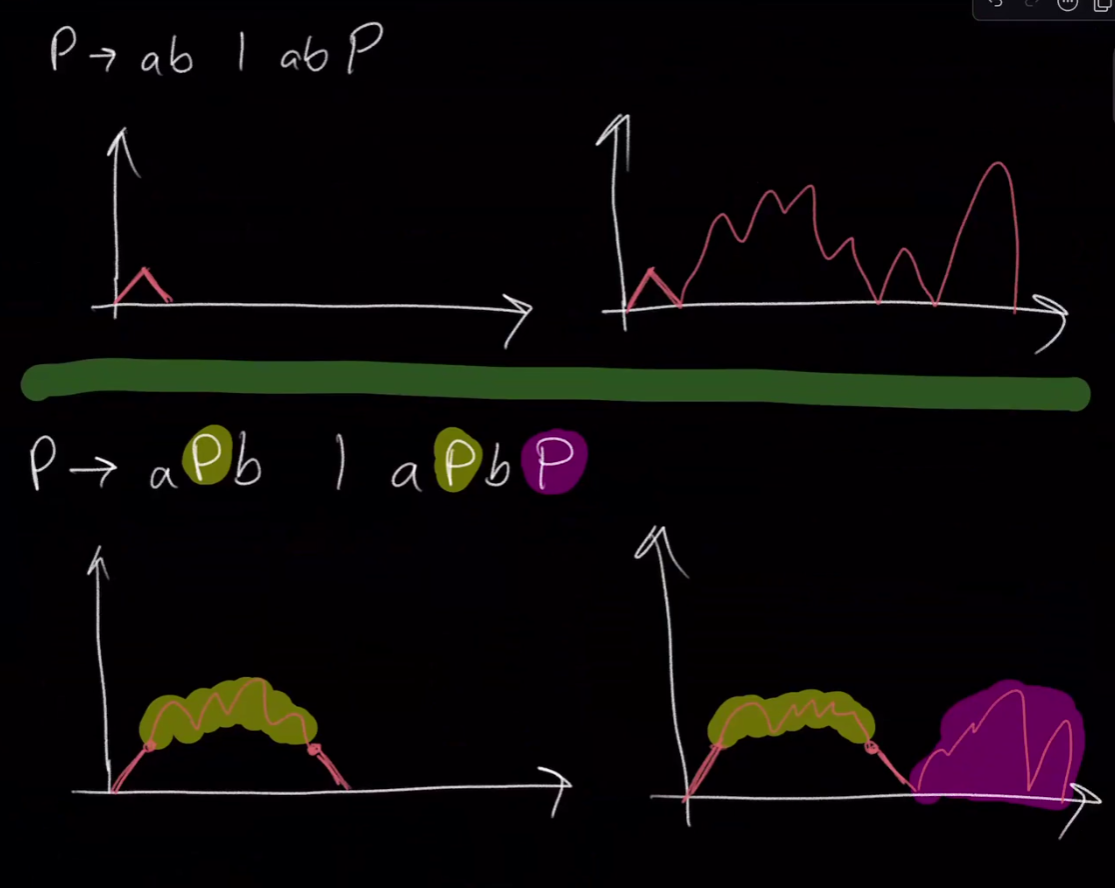

  • so we know a substring follows the grammar if the end of the substring does not dip below the horizontal line (y-coord) of the start symbol of the substr

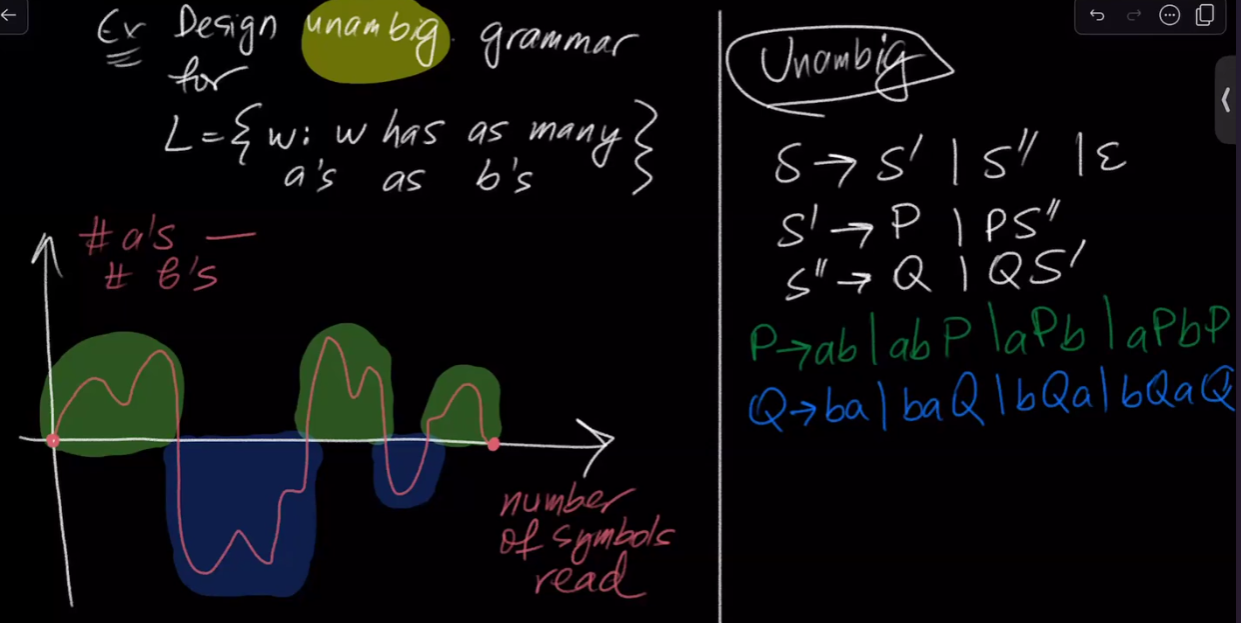

  • thus for all possible variations of the mappings of the rules, if we can show the strings are properly formatted by the end of the string, it must be unambiguous:
  • e.g., identifying the sections of the graph can give us an unambiguous grammar, consider:
  • e.g., carrying over unambiguous grammars to new problems:
